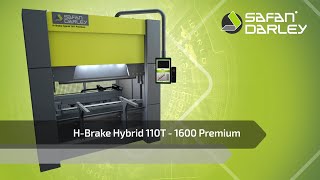

H-Brake Hybrid 110T-1600 Premium
Unique hybrid concept
- Very high tonnage density
- Hybrid drive system
- Low oil volume (18 ltr)
- Noiseless press brake machine
- More than 30% higher productivity
- Backgauge over full working length
- High dynamic Y-axis control
- Up to 50% energy saving
Tonnage density
The base is O-frame technology from the E-Brake range, ensuring a stable and compact press brake with a very high tonnage density. Compared with traditional hydraulic press brakes on the market, this system generates a considerable increase in the press capacity per available bending length. This opens up a wide range of possibilities for the machine concept.
This press brake can generate a maximum pressing capacity of 110 tonnes over a bending length of approximately 1600 mm, an ideal solution for companies with limited space. In addition, smaller, thick sheet-metal parts no longer need to be produced on oversized press brakes, which improves the machine park’s efficiency and usability.
Request a demonstration
Thank you
Thank you for your request
Ergonomic package
With the Ergonomic implementation option, the press brake and its operator work as one. The operator is surrounded by a support table, which is especially beneficial when bending large quantities. The ergonomic ease of operation is optimized because the seating position can be fully adjusted as desired, increasing productivity.
Technical information
| Model | Tonnage | BowLength | Pressure force in US Ton | Cutting length in inches | Maximum stroke in inches | Q-dimension in inches | Closing speed in inch/min | Bending speed max. in inch/min | Return speed in inch/min | Motor power in kW | Weight in lb |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H-Brake Hybrid 110-1600 | 120 | 63 | 120 | - | 11 | - | 1275.590 | 23.622 | 1275.590 | 15 | 13.280 |
- E-Control EC10 control, Split screen
- Y1/Y2 axis CNC controlled
- X-axis CNC controlled
- R-axis CNC controlled
- Z1 and Z2-axis manual
- NSCL-I MC PRO top tool adapter
- NSCR-I MC PRO CNC controlled crowning
- Set of 2 support arms (300 mm)
- Programmable and integrated safety light screen
- Workspace lighting at the front and rear of the machine
- Set of 2 support arms (300 mm)
Available accessories
« Back to the overview
Options:
- I-Mate: maximum plate weight 100kg
- E-Mate 2000: maximum plate weight 500 kg*
* available for Ultra version
Options:
- E-bend S: sheet thickness measuring system
- E-bend L Blue: angle measuring system*
*available for Ultra version
Options:
- Movable support arms
- Moveable support arms, height manual adjustable
- Moveable support arms, height pneumatically adjustable
Options:
- New Standard
- European Style
Extra option:
- Smart Tool Locator
Options:
- CNC-Controlled Z1+Z2 axis
- CNC-Controlled Delta X axis
- CNC-Controlled 3D back gauge*
*available for Ultra version
I-Mate provides automatically calculated support during the entire bending sequence, from flat sheet to the programmed bending angle based on material type, sheet thickness and lower tool parameters.
I-Mate has a lifting moment of 750 Nm with a maximum sheet weight of 22Lbs (100 kg).
Complete Touch Screen convenience
The SafanDarley E-Control is fully touch screen, whereby the only buttons visible on the 21” screen are those that are needed during operation. The controls simply run on a PC under Microsoft Windows®, the software was developed based on Microsoft.net Framework.
The H-Brake 110T-1600 Premium press brake is fitted as standard with E-Control EC10 controls on a single split-screen display. This functionality allows the user to run two applications on a single display, enabling you to create a paperless working environment using the EC10 controls.
Enlarged daylight opening
It is an option to equip the press brake with a special frame with an enlarged daylight opening, also known as Q -dimension. Special enlarged intermediates are placed in the enlarged frame. This makes it possible to bend products such as enclosure/cabinets with up to 600 mm high side panels.
- Enlarged Q-size of 1.425mm.
- Stroke 280mm.
- Special Intermediates with 700mm working height.
