E-折弯机 35-130 吨
折弯机以 E 命名，代表 电子化 (electronic)
具备均匀弯曲功能的伺服电子折弯机
- 无需凸面加工
- 全电子驱动
- 生产率提高30%以上
- 节约能源可达50%，减少二氧化碳排放量
- 无有害液压油
- 低噪音运行
- 后档规遍布整个工作长度
- 方便用户使用的触摸屏控制
集结安全系统
高速工作但没任何危险：SafanDarley另安全集结在控制系统成真。通过 SafanDarley E-Controls管控安全光栅屏障达成。除此，SafanDarley E-折弯机附加内置安全配置。弹簧复位应用保证即使机床故障，上梁永远向上动作。
要求示範
Thank you
Thank you for your request
配件
« 回到導引
Control
Options:
- EC20
- Dual display
- EC30
- EC40
- EC20
- Dual display
- EC30
- EC40
Bekijk opties
Axis / Back gauge system
Options:
- Z1+Z2 axis CNC controlled
- CNC controlled Delta X axis (horizontal transposition from a single back gauge finger)
- 3D back gauge
- Z1+Z2 axis CNC controlled
- CNC controlled Delta X axis (horizontal transposition from a single back gauge finger)
- 3D back gauge
Bekijk opties
Q size
Options:
- 650 mm
- 690 mm
- 650 mm
- 690 mm
Bekijk opties
Support arms press brakes
Options:
- Fixed support arms
- Fixed arms can be moved along the machine
- Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel
- Fixed arms can be moved along the machine, and the height can be adjusted pneumatically
- Fixed support arms
- Fixed arms can be moved along the machine
- Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel
- Fixed arms can be moved along the machine, and the height can be adjusted pneumatically
Bekijk opties
Tool system
Options:
- New Standard NSCL-l HC pro hydraulic tool clamp system
- European Style clamping (only in combination with a Q size of 650 mm)
- New Standard NSCL-l HC pro hydraulic tool clamp system
- European Style clamping (only in combination with a Q size of 650 mm)
Bekijk opties
Measurement
Options:
- E-bend S
- E-bend L Blue
- E-bend S
- E-bend L Blue
Bekijk opties
Bending aid
Options:
- E-Mate maximum plate weight 30kg.
- E-Mate Plus maximum plate weight 150 kg.
- E-Mate 2000 maximum plate weight 500 kg.
- E-Mate maximum plate weight 30kg.
- E-Mate Plus maximum plate weight 150 kg.
- E-Mate 2000 maximum plate weight 500 kg.
Bekijk opties
Materials cupboard
Options:
- Materials cupboard on the machine
- Materials cupboard on the machine
Bekijk opties
Axis Back gauge system CNC controlled Delta X axis
Back gauge system that serves as a gauge for various plate material products Choice of back gauge systems depending on the complexity of the product to be bend.
Axis Back gauge system Z1+Z2 axis CNC controlled
Back gauge system that serves as a gauge for various plate material products Choice of back gauge systems depending on the complexity of the product to be bend.
Control EC30
The EC 30 control enables you to programme in 3D.
Control double display
By working with a double display, a paperless working environment is created.
E-Bend S
The system measures the plate thickness down to one hundredth. You can programme exactly when measurements must be taken.
E-Mate
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid.
E-Mate Plus
The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid.
Fixed support arms
Support arms serve to support the plate material.
Fixed support arms can be moved
Fixed arms can be moved along the machine.
Fixed support arms moveable and adjustable in height
Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel.
Fixed support arms pneumatic
Fixed arms can be moved along the machine, and the height can be adjusted pneumatically.
Materials cupboard
Materials cupboard on the machine. Storage facility for – for example – tools or documentation.
Q size 650
Offers even more freedom of choice in tools.
Q size 690
Offers even more freedom of choice in tools.
Tool system European Style
European Style clamping (only in combination with a Q size of 650 mm). European Style tool intake.
Tool system New Standard
New Standard NSCL-l HC pro hydraulic tool clamp system. Quick exchange system for vertical loading and unloading through safety click in tools.
完满触屏带来的便利
SafanDarley E-Control是完全触屏，唯一在17” 屏幕可目视的按键是操作必需。控制系统在计算机以微软Windows®作平台，软体则以微软 net Framework作基础
标准后档规限位器
3D后档规限位器
侧视图
E Mate
E Mate
弯曲试验产品
E Bend S
移动支架臂
E Bend S
E Bend S
E-Mate Plus弯曲辅助设备
E Mate Plus
带有X-、R-和Z1+Z2和Delta X轴的后档规
可调整长度的移动支架臂
要查看这部分内容，您需要启用追踪 cookie
更多信息
点击此处更改您的 cookie 设置E-Brake 35-200T movie
要查看这部分内容，您需要启用追踪 cookie
更多信息

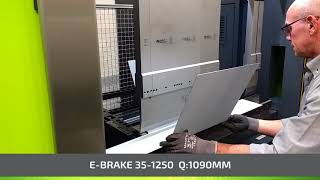

点击此处更改您的 cookie 设置Special E-Brake 35T with enlarged frame (Q=1090mm)
