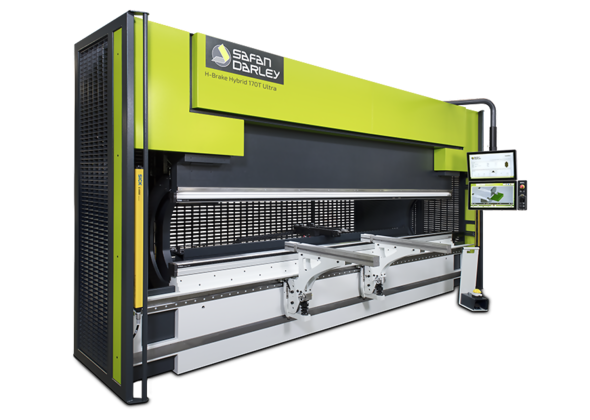

H-Brake Hybrid 110-170T Ultra

Unique hybrid concept

Considerably low oil tank volume (18-30 ltr)
High dynamic Y-axis control
More than 30% higher productivity
Quiet operation
Up to 50% energy saving
Deep throat as standard for maximum bending capacity (510 mm)

Integratedsafety

Work fast without risk: SafanDarley makes that a reality with the safety system integrated within the controls. It works with a safety light screen that is automatically directed from the SafanDarley E-Controls.

Request a demonstration

Thank you

Thank you for your request

Model	Tonnage	BowLength	Pressure force in US Ton	Cutting length in inches	Maximum stroke in inches	Q-dimension in inches	Closing speed in inch/min	Bending speed max. in inch/min	Return speed in inch/min	Motor power in kW	Weight in lb
110.21/15	110	-	120	7	11	22-26	540	40	540	15	16.976
110.31/25	110	-	120	10	11	22-26	540	40	540	15	19,180
110.37/31	110	-	120	12	11	22-26	540	40	540	15	20.503
110.42/37	110	-	120	14	11	22-26	540	40	540	15	26,455
170.21/15	170	-	190	7	11	22-26	540	40	540	22	20.944
170.31/25	170	-	190	10	11	22-26	540	40	540	22	23,149
170.37/31	170	-	190	12	11	22-26	540	40	540	22	27,117
170.42/37	170	-	190	14	11	22-26	540	40	540	22	30,865

E-Control EC10 control
Control mounted on a rotating arm on the right side of the machine
Y1/Y2 axis are CNC-powered
X axis is CNC-powered
R axis is CNC-powered
Z1 and Z2 axis are controlled manually
Wila NSCL-II Premium top tool adaptor
Wila NSCR-II Premium CNC-powered crowning
2 support arms (11.81 inch)
Programmable and integrated safety light screen (E-Control)
Foot pedal including “Hold To Run”-function
Work area lighting on the front and rear side of the machine
Electronic installation of mains connection 3/N/PE 50 Hz 230/400 VAC
Machine is designed in accordance with the prevailing CE standards

Available accessories

« Back to the overview

Options:
- EC20
- Dual display
- EC30
- EC40

Bekijk opties

Options:
- Z1+Z2 axis CNC controlled
- CNC controlled Delta X axis (horizontal transposition from a single back gauge finger)
- 3D back gauge

Bekijk opties

Options:
- Fixed support arms
- Fixed arms can be moved along the machine
- Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel
- Fixed arms can be moved along the machine, and the height can be adjusted pneumatically

Bekijk opties

Options:
- New Standard NSCL-l HC pro hydraulic tool clamp system
- European Style clamping (only in combination with a Q size of 650 mm)

Bekijk opties

Options:
- E-bend S
- E-bend L Blue

Bekijk opties

Options:
- E-Mate maximum plate weight 30kg.
- E-Mate Plus maximum plate weight 150 kg.
- E-Mate 2000 maximum plate weight 500 kg.

Bekijk opties

Options:
- Parking station on the left of the machine.
- Parking station on the right of the machine.

Bekijk opties

Options:
- Materials cupboard on the machine

Bekijk opties

Back gauge system that serves as a gauge for various plate material products. Choice of back gauge systems depending on the complexity of the product to be bent.

This 2D graphic control allows you to easily draw in 2D, after which the bending program is automatically generated and simulated. This EC20 also has the option of displaying programs created off-line, in Autopol and Radan, graphically.

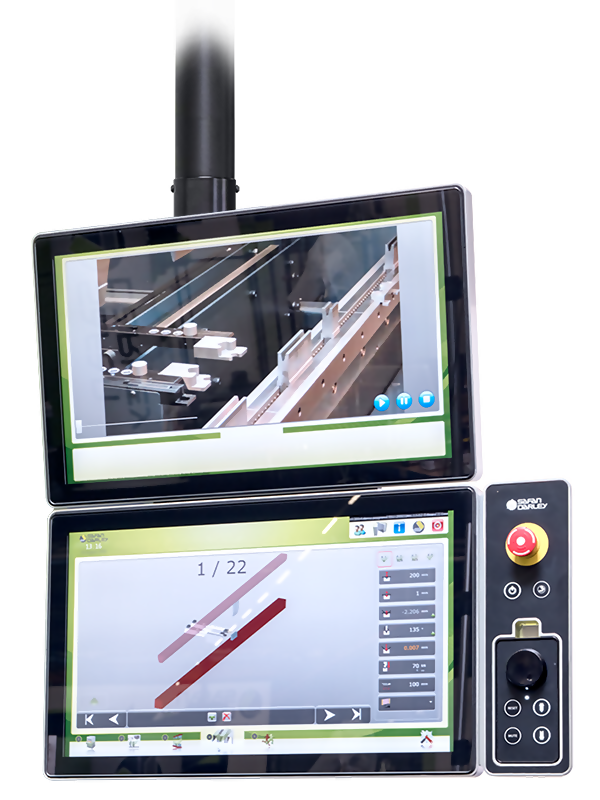

By working with a double display, a paperless working environment is created.

The system consists of two laser sensors on each side of the table, which are CNC controlled through the control system. The system continuously displays and corrects the position of the Y axis on the basis of the actual angle of the product, thus guaranteeing that the end product has the highest degree of corner precision.

The system measures the plate thickness down to one hundredth. You can programme exactly when measurements must be taken.

The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid.

Support arms serve to support the plate material.

Fixed arms can be moved along the machine.

Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel.

Fixed arms can be moved along the machine, and the height can be adjusted pneumatically. Support arms serve to support the plate material.

Materials cupboard on the machine. Storage facility for – for example – tools or documentation.

Parking station on the left of the machine. Parking station for the benefit of bending aids and/or support arms. The bending aids and/or support arms can be placed on the left or right side on the outside of the machine.

Parking station on the right of the machine. Parking station for the benefit of bending aids and/or support arms. The bending aids and/or support arms can be placed on the left or right side on the outside of the machine.

European-style clamping (only in combination with a Q size of 650 mm). European-style tool intake.

New Standard NSCL-l HC pro hydraulic tool clamp system. Quick exchange system for vertical loading and unloading through safety click in tools.

« Back to the overview

Complete Touch Screen convenience

The SafanDarley E-Control is fully touch screen, whereby the only buttons visible on the 21” screen are those that are needed during operation. The controls simply run on a PC under Microsoft Windows®, the software was developed based on Microsoft.net Framework.
