H-Brake Hybrid 110-170T Ultra

Unique hybrid concept

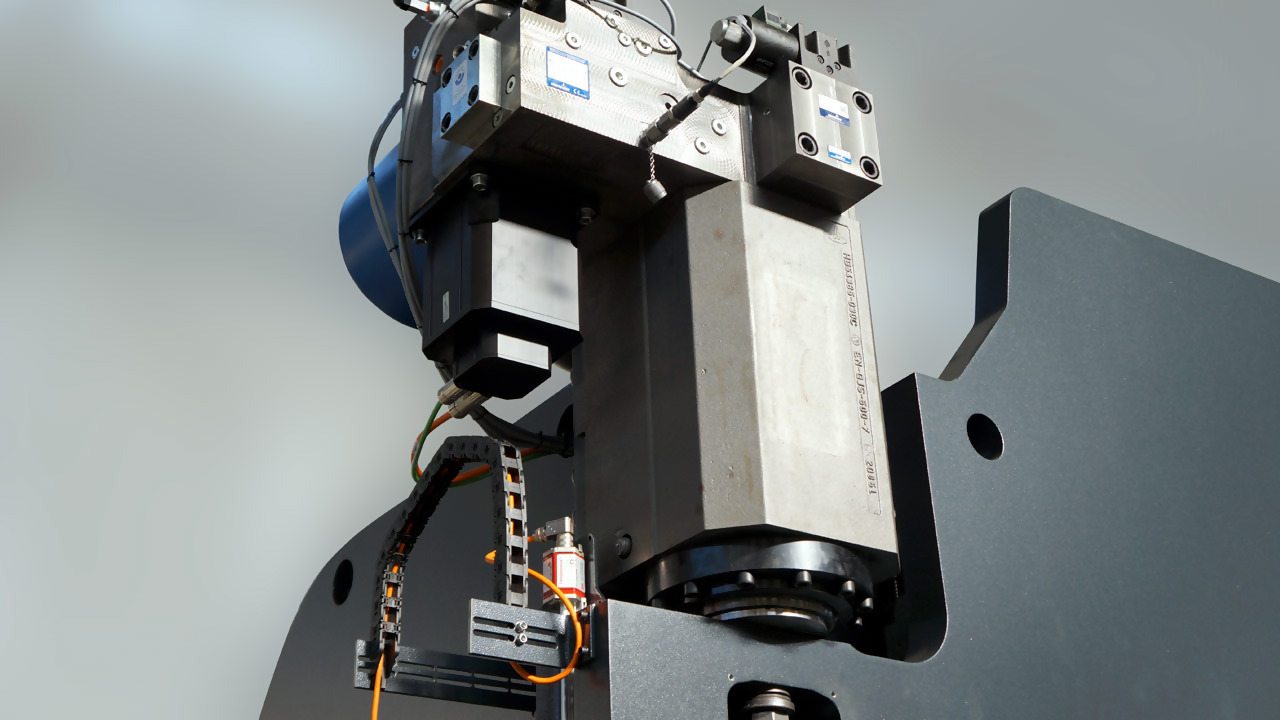

Considerably low oil tank volume (18-30 ltr)
High dynamic Y-axis control
More than 30% higher productivity
Quiet operation
Up to 50% energy saving

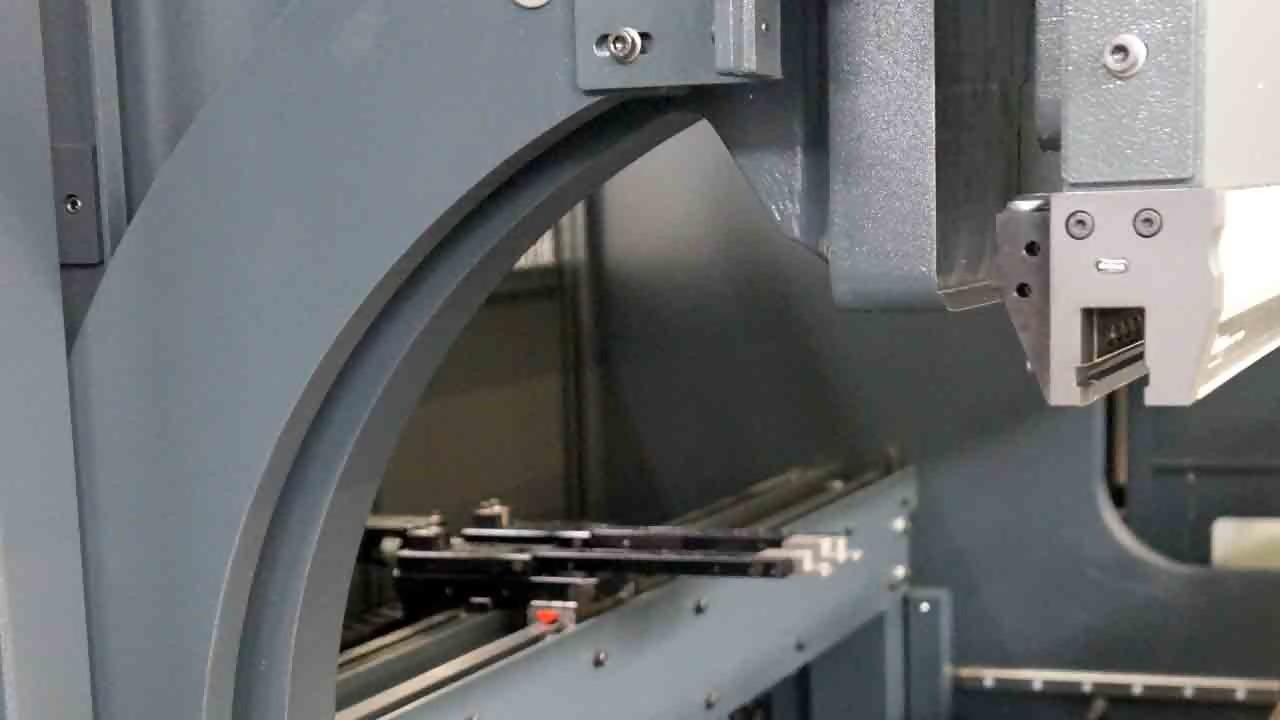

Deep throat as standard for maximum bending capacity (510 mm)

Integratedsafety

Work fast without risk: SafanDarley makes that a reality with the safety system integrated within the controls. It works with a safety light screen that is automatically directed from the SafanDarley E-Controls.

Request a demonstration

Thank you

Thank you for your request

Model	Tonnage	BowLength	Pressure force in kN	Bending length in mm	Maximum stroke in mm	Q-dimension in mm	Closing speed in mm/sec	Bending speed max. in mm/sec	Return speed in mm/sec	Motor power in kW	Weight in kg
110.21/15	110	1550	1100	2040	280	555-655	230	10	230	15	7700
110.31/25	110	2550	1100	3060	280	555-655	230	10	230	15	8700
110.37/31	110	3150	1100	3655	280	555-655	230	10	230	15	9300
110.42/37	110	3760	1100	4250	280	555-655	230	10	230	15	12000
170.21/15	170	1550	1700	2040	280	555-655	230	10	230	22	9500
170.31/25	170	2550	1700	3060	280	555-655	230	10	230	22	10500
170.37/31	170	3150	1700	3655	280	555-655	230	10	230	22	12300
170.42/37	170	3760	1700	4250	280	555-655	230	10	230	22	14000

E-Control EC10 control
Control mounted on rotating arm on right side of machine
Y1/Y2 axis CNC controlled
X-axis CNC controlled
R-axis CNC controlled
Z1 and Z2-axis manual
Wila NSCL-I MC PRO top tool adapter
Wila NSCR-I MC PRO CNC controlled crowning
Set of 2 support arms (300 mm)
Programmable and integrated safety light screen
Foot Pedal with “Hold To Run” function
LED workspace lighting at the front and rear of the machine
Electrical installation for power connection 3/N/PE 50Hz 230/400 VAC
Machine equipped in accordance with the applicable CE standard

Available accessories

« Back to the overview

Options:
- EC20
- Dual display
- EC30
- EC40

Bekijk opties

Options:
- Z1+Z2 axis CNC controlled
- CNC controlled Delta X axis (horizontal transposition from a single back gauge finger)
- 3D back gauge

Bekijk opties

Options:
- Fixed support arms
- Fixed arms can be moved along the machine
- Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel
- Fixed arms can be moved along the machine, and the height can be adjusted pneumatically

Bekijk opties

Options:
- New Standard NSCL-l HC pro hydraulic tool clamp system
- European Style clamping (only in combination with a Q size of 650 mm)

Bekijk opties

Options:
- E-bend S
- E-bend L Blue

Bekijk opties

Options:
- E-Mate maximum plate weight 30kg.
- E-Mate Plus maximum plate weight 150 kg.
- E-Mate 2000 maximum plate weight 500 kg.

Bekijk opties

Options:
- Parking station on the left of the machine.
- Parking station on the right of the machine.

Bekijk opties

Options:
- Materials cupboard on the machine

Bekijk opties

Back gauge system that serves as a gauge for various plate material products Choice of back gauge systems depending on the complexity of the product to be bend.

This 2D graphic control allows you to easily draw in 2D, after which the bending programme is automatically generated and simulated. This EC20 also has the option of displaying.

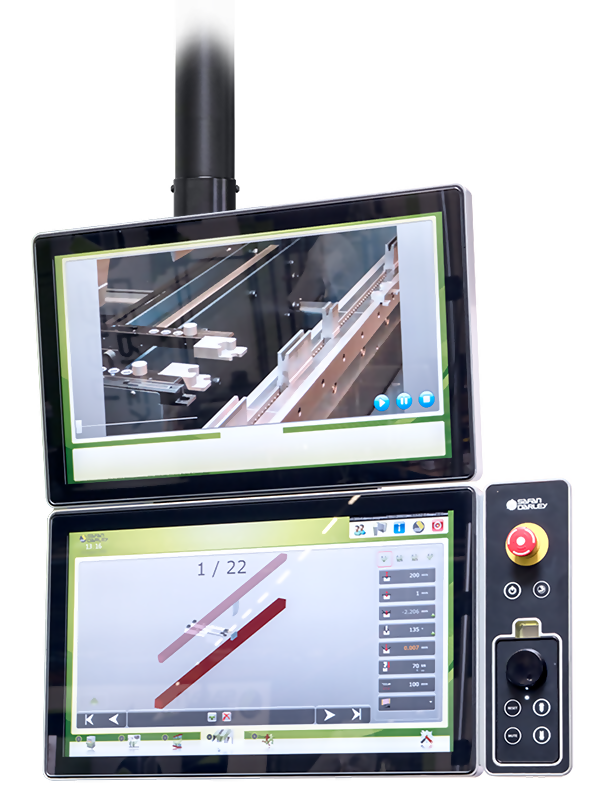

By working with a double display, a paperless working environment is created.

The system consists of two laser sensors on each side of the table, which are CNC controlled through the control system. The system continuously displays and corrects the position of the Y axis on the basis of the actual angle of the product, thus guaranteeing that the end product has the highest degree of corner precision.

The system measures the plate thickness down to one hundredth. You can programme exactly when measurements must be taken.

The bending aid supports and follows the plate very carefully throughout the entire bending process. The height and V size are variable and can easily be adjusted to the bending aid.

Support arms serve to support the plate material.

Fixed arms can be moved along the machine.

Fixed arms can be moved along the machine, and the height can be adjusted with a hand wheel.

Fixed arms can be moved along the machine, and the height can be adjusted pneumatically.

Materials cupboard on the machine. Storage facility for – for example – tools or documentation.

Parking station on the left of the machine. Parking station for the benefit of bending aids and/or support arms. The bending aids and/or support arms can be placed on the left or right side on the outside of the machine.

Parking station on the right of the machine. Parking station for the benefit of bending aids and/or support arms. The bending aids and/or support arms can be placed on the left or right side on the outside of the machine.

European Style clamping (only in combination with a Q size of 650 mm). European Style tool intake.

New Standard NSCL-l HC pro hydraulic tool clamp system. Quick exchange system for vertical loading and unloading through safety click in tools.

« Back to the overview

Complete Touch Screen convenience

The SafanDarley E-Control is fully touch screen, whereby the only buttons visible on the 21” screen are those that are needed during operation. The controls simply run on a PC under Microsoft Windows®, the software was developed based on Microsoft.net Framework.
